The ProboStatTM is a cell for measurements of electrical properties, transport parameters, and kinetics of materials, solid/gas interfaces and electrodes under controlled atmospheres at high temperatures. The versatile construction and accessories of the present system are based on years of development and experience in the Kofstad/Norby group at the University of Oslo. A ProboStatTM system may offer a cost-effective alternative to developing and building your own cell for studies, characterization and testing of inorganic materials, electroceramics, fuel cell components, membrane materials, etc.

Brief description

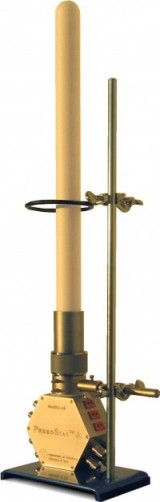

The sample under test rests on a ca. 50 cm long support tube of alumina, inside a closed outer tube of alumina or silica. The sample can be contacted with 2, 3 or 4 electrodes of e.g. platinum, using disk, van der Pauw, or bar geometries. A spring-loaded alumina assembly holds the sample and electrodes in place. 16 electrical feedthroughs allow use of 4 shielded electrode leads, surface guard, and up to three thermocouples (e.g. for Seebeck coefficients). Electrical connections are made via standard multiconnector, coax cables suitable for standard impedance spectrometer connectors, and standard thermocouple compensation cables. Gases can be fed in single or dual chamber modes directly onto or from electrodes, allowing measurements under controlled atmospheres, transport number measurements in gradients, and testing of fuel cell, pump, and sensor components. Gas supply is via Swagelok quick-connects. Suitable for >4 cm diameter, <80 cm long tubular furnaces.

Materials properties measured and applicable methods

• Conductivity vs T, pO2, pH2O, etc.
• DC, AC, impedance spectroscopy
• Dielectric properties, loss, etc.
• Disk, van der Pauw, and bar geometries
• 2, 3, and 4 electrodes
• Ionic transport number
• Proton transport number in oxides
• Seebeck coefficient
• I-V-characteristics
• Fuel cell components and single cell testing
• Electrode kinetics
• H/D isotope effects
• Electrochemical pumping, gas permeation and electrocatalysis with gas analysis (e.g. GC or MS) on outlets
• Sensor testing
• Hot zone accessories (noble metals and ceramics) for most methods can be supplied.
• Poling of ferroelectrics possible with the high-voltage (kV) version

Specifications

• Outer tube diameter: 40 mm
• Overall length: 75 cm, shorter versions available (-10, -20, -30 cm)
• Single end cell assembly
• Sample fixation: spring force via alumina rods
• All hot-zone electrode leads detachable via feedthrough mini-connectors
• Support tube systems from 10 to 24 mm diameter detachable
• For up to 24 mm diameter disk samples
• For up to 50 mm long bar samples
• Temperature: typical long term: <1400 °C; shorter term: <1600 °C
• Atmosphere: Oxidizing or reducing, wet or dry, from small overpressure to low vacuum
• 6 BNC electrode connections for impedance spectrometers etc.
• Internal shields bridging (for SI 1260 , HP 4192A etc.), ground and guard switches
• 3 thermocouple connections
• 4 Swagelok gas quick-connects to 1/8'' tubing (other connections on request)
• Standard materials: Alumina AL23, Pt, Pt10%Rh, Ni-plated brass
• Water cooling (or heating) of cold end base unit is possible
• Spare parts supply, also of hot zone consumables

Custom-made solutions

For special requirements may in many cases be offered; SS, other ceramics and metals, high voltage (10 kV), liquid samples, high pressures, vacuum flange, etc.

We provide advice on measurements and auxiliary equipment:

• Furnace and temperature control
• Atmosphere control and gas mixing
• Measurement instrumentation
• Multiplexing of several cells to e.g. one impedance spectrometer

Availability and pricing

Delivery time: Up to 12 weeks (normally 8 weeks).
Prices: contact us or a representative.

Brouchure

Download a 4-page brouchure on the ProboStat and accessories (ca. 300 kb .pdf file)

General terms

Delivery times: < 16 weeks, normally 8 - 12 weeks.
30-days money back satisfaction guarantee, 2 year warranty (except on hot-zone parts) and free email support.

Specifications, terms, and prices/exchange rates may change. Local deviations may apply.

The packages described include the cell and its connections and furnishing as described.

Furnace, power supply and controller, gas supply/mixer and measuring instrumentation are not included.

Useful information

The cell connects directly to advanced impedance spectrometers (e.g. the Solartron SI 1260 FRA) and has shield and guard as well as shield counter-current functionality for these. Simpler LCR and DC instrumentation as well as temperature controllers and readouts are also easily connectable. The cables we provide may be ordered at various lengths (standard is 3 m).

The cell in standard version connects via enclosed Swagelok quick-connects to 1/8'' tubing for gas inlets and outlets. The prices quoted above are for brass connects. Other dimensions, types of connect, and stainless steel options on request.

Vertical tube furnaces of >4 cm inner diameter and 35 - 80 cm length are suitable. They should be mounted roughly with bottom at eye-height of operator (for best convenience), with 80-90 cm free space below. The cell may be inserted and held during measurements along a vertical bar mounted 5-10 cm behind the furnace opening, e.g. as part of a laboratory bar matrix. Alternatively, the simple mounting stand (when supplied) or similar lab stand may be used when it can rest on a benchtop underneath the furnace.
