BZY disk samples

Dense Button Cells - BZY15, BZY15-Ni, and BZCY81-Ni

BZY is considered to be one of the candidate materials for proton ceramic fuel cells (PCFCs) and electrolyzer cells (PCECs) due to its high proton conductivity and chemical stability towards H2O and CO2 containing atmospheres.

Suitable for studies of proton conduction, impedance electroscopy of bulk, grain boundary, and electrodes.

Standard electrolyte for testing of electrodes for PCFCs and PCECs.

NorECs now offers BZY-based disk samples as described below.*

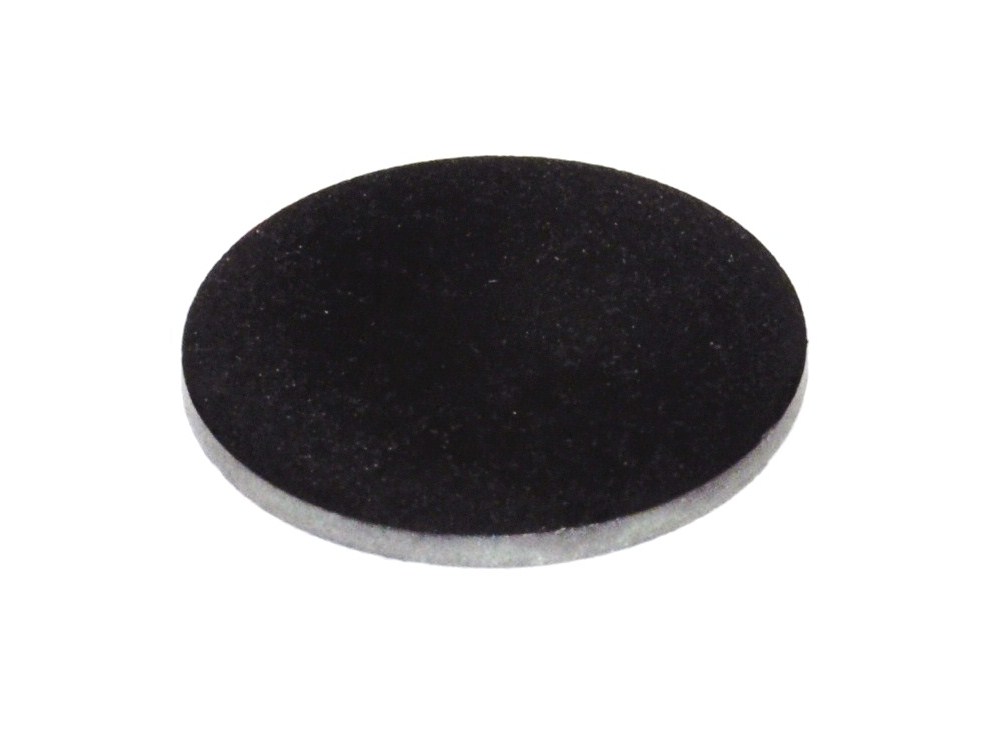

BZY15-Ni

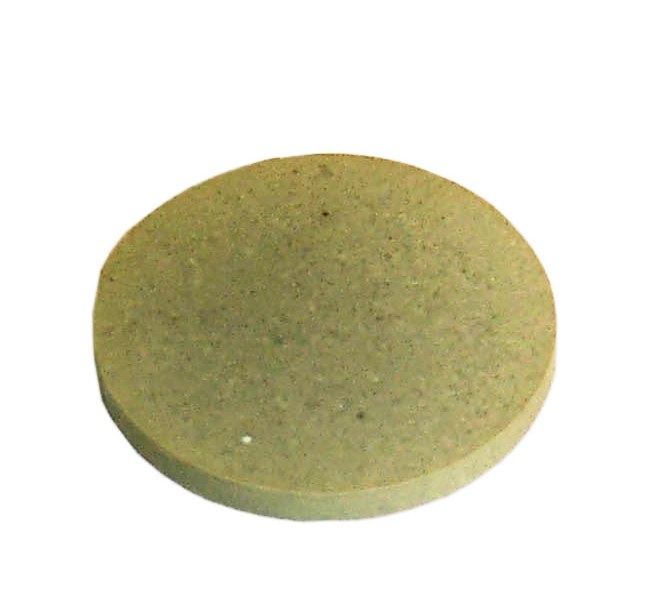

BZY



 Short name
BZY15 BZY15-Ni BZCY81-Ni
 Formula    BaZr0.85Y0.15O3   
   BaZr0.85Y0.15O3
 BaZr0.8Ce0.1Y0.1O
 Ni content 0 1 wt% NiO 1 wt% NiO
 Diameter (mm) 19 18 17
 Thickness (mm) 1-2 1-2 1-2
 Grain size (µm) ˜2-3 3-5 -
 Estimated density (%) 94-97 99 99

 *Other compositions and dimensions are upon request.
